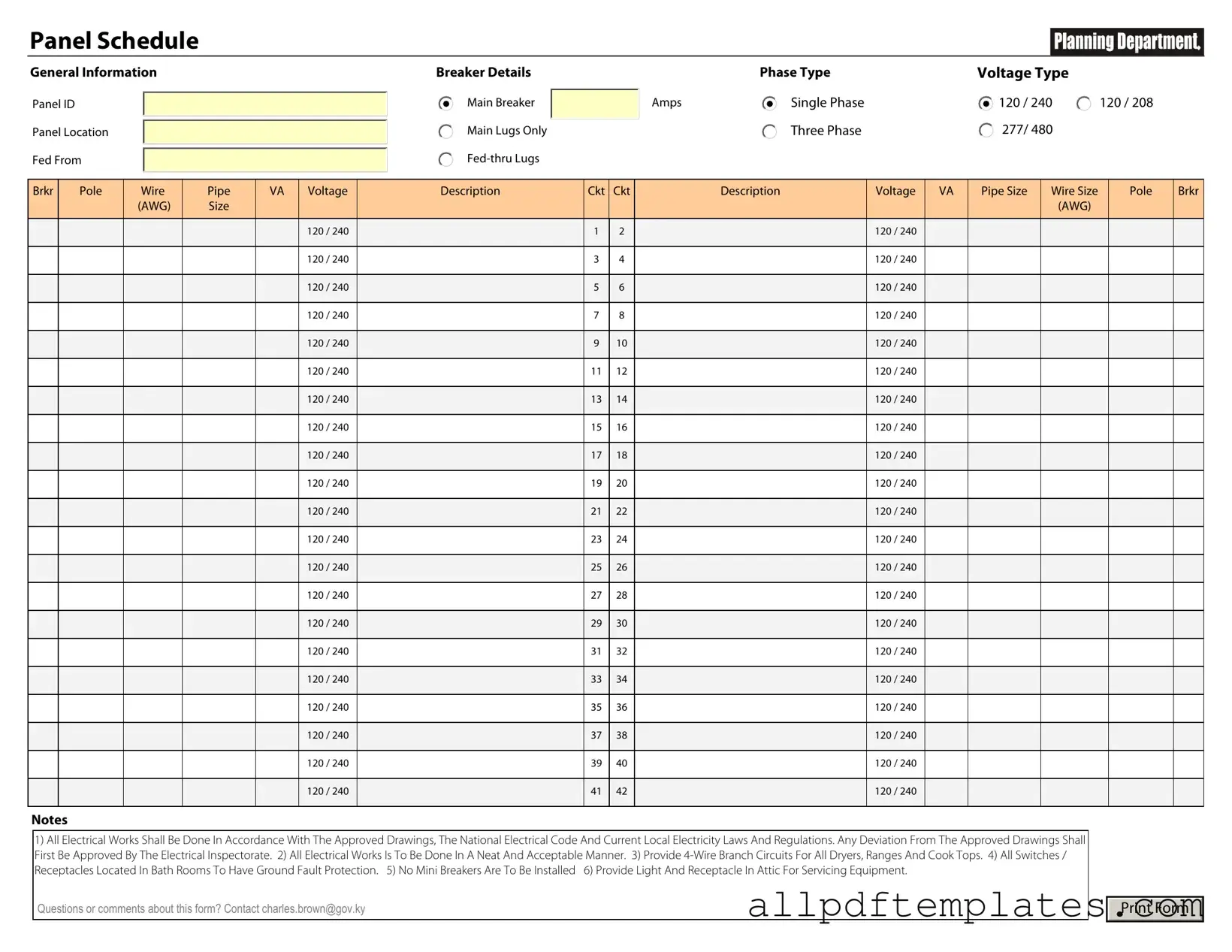

Get Electrical Panel Schedule Form in PDF

1. What is an Electrical Panel Schedule?

   An Electrical Panel Schedule is a detailed document that outlines the electrical circuits and their corresponding loads within a building's electrical panel. It provides essential information such as circuit numbers, the type of loads connected, and the amperage ratings. This schedule helps electricians and maintenance personnel quickly identify and manage electrical systems, ensuring safety and efficiency.

2. Why is it important to have an updated Electrical Panel Schedule?

   An updated Electrical Panel Schedule is crucial for several reasons. First, it ensures that anyone working on the electrical system has accurate information about the circuits and their loads. This can prevent overloads and reduce the risk of electrical fires. Second, it aids in troubleshooting issues that may arise, making it easier to identify faulty circuits or equipment. Lastly, having an updated schedule is often a requirement for inspections and compliance with local building codes.

3. How do I create an Electrical Panel Schedule?

   Creating an Electrical Panel Schedule involves several steps. Begin by gathering information about the electrical panel, including its capacity and the types of circuits it contains. Next, list each circuit along with its corresponding load, circuit breaker size, and any other relevant details. It's helpful to use a template or software designed for this purpose to ensure consistency and clarity. Finally, review the schedule for accuracy and update it regularly as changes occur in the electrical system.

4. Who should maintain the Electrical Panel Schedule?

   The responsibility for maintaining the Electrical Panel Schedule typically falls on the facility manager, electrical contractor, or maintenance personnel. Regular reviews and updates should be conducted whenever changes are made to the electrical system, such as adding new circuits or replacing existing equipment. Ensuring that the schedule is current is essential for safety and compliance.

Understanding the Electrical Panel Schedule form is crucial for anyone involved in electrical work or home renovations. However, several misconceptions can lead to confusion. Here’s a list of common misunderstandings:

1. It’s only for electricians. Many homeowners can benefit from understanding the panel schedule. It helps in managing energy use and planning for future upgrades.
2. All electrical panels are the same. Different panels serve various purposes and have unique configurations. Knowing the specifics of your panel is essential.
3. Panel schedules are optional. In many jurisdictions, having a panel schedule is a requirement for safety and compliance with local codes.
4. It only lists circuit breakers. A complete panel schedule includes information about the loads, circuits, and their respective amperage ratings.
5. Updating the schedule is unnecessary. Changes in your electrical system, such as adding new appliances, should be reflected in the panel schedule.
6. Panel schedules are only for new installations. Existing systems can also benefit from an updated panel schedule, especially during renovations.
7. It’s too complicated to understand. While it may seem technical, a basic understanding can significantly improve safety and efficiency.
8. Only licensed professionals can create a schedule. Homeowners can create one, but it's best to consult with a professional to ensure accuracy.
9. Panel schedules are only for commercial buildings. Residential properties also require panel schedules to ensure proper management of electrical loads.
10. Once created, it never needs to be changed. As your home or business evolves, so should your electrical panel schedule. Regular updates are important.

By addressing these misconceptions, individuals can better navigate their electrical systems and ensure safety and compliance.

1. Incomplete Information: One common mistake is failing to provide all necessary details. Each circuit must be listed with its corresponding load and breaker size. Omitting this information can lead to confusion and errors in electrical planning.

2. Incorrect Load Calculations: Many people miscalculate the electrical load for each circuit. It’s essential to ensure that the total load does not exceed the panel’s capacity. This oversight can result in overloaded circuits and potential safety hazards.

3. Improper Circuit Designation: Users often mislabel circuits or use inconsistent naming conventions. Each circuit should have a clear and logical designation, making it easier to identify and troubleshoot issues later.

4. Neglecting Future Expansion: Failing to consider future electrical needs is another mistake. It’s wise to leave space for additional circuits or increased load capacity, as this can save time and money down the line.

5. Ignoring Local Codes: Some individuals overlook the importance of adhering to local electrical codes and regulations. Each jurisdiction may have specific requirements that must be followed to ensure safety and compliance.
